Overview:

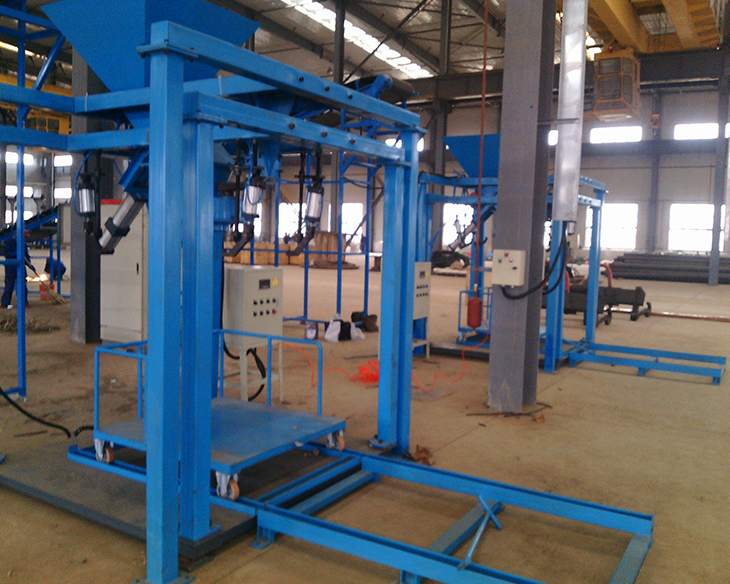

The ton bag filling machine is mainly composed of feeding mechanism (vibration feeding, belt feeding), body, weighing platform, bag hanging device, bag clamping device, lifting mechanism, conveyor, electrical control system, pneumatic control system, etc. When the packaging system is working, all the packaging processes except for manual bagging are automatically completed by PLC program control, and the procedures of bag clamping, blanking, metering, bag loosening, conveying, etc. are completed in sequence; the packaging system has accurate measurement, simple operation and low noise , Less dust, compact structure, convenient installation, safe and reliable, and safety interlocking among various work stations.
Structural features | |
Feeding method | Belt feeding, vibration feeding (optional) |
Measurement method | Down measurement (ground platform scale) ton package scale |
Control System | Functions such as automatic tare, automatic drop correction, over-tolerance alarm and fault self-diagnosis. Equipped with a communication interface, it is convenient for online and networking, and can monitor and manage the packaging process from time to time. |
Applicable materials: 10-80mm block materials. | |
Applicable industries: chemical industry, medicine, feed, fertilizer, mineral powder, electric power, coal, metallurgy (ferroalloy), cement, biological engineering, etc. | |
technical parameter | |
Packaging capacity | 20-40bag/h |
Packaging accuracy | ≤±0.5% |
Packing specification | 500-2000Kg/bag |
power supply | AC380V, 50Hz |
Gas source | 0.6-0.8MPa, air consumption 5-10m³/h |
Dust removal air volume | 1000-4000m³/h (optional according to material characteristics) |
Environmental requirements: -10℃-50℃, humidity <> | |
Packaging system options | |
Delivery form | 1. No conveying 2. Chain conveyor 3. Chain roller conveyor 4. Handling trolley... |
Control System | 1. Explosion-proof 2. No explosion-proof |
Dust removal system | 1. Equipped with dust collector 2. No need for dust collector 3. Drum bag return air device |
Equipment material | 1. Carbon steel 2. Stainless steel 3. Stainless steel in contact with materials |
Vibrating bag method | 1. Bottom vibrating platform 2. Lifting pier material package (standard configuration) |
