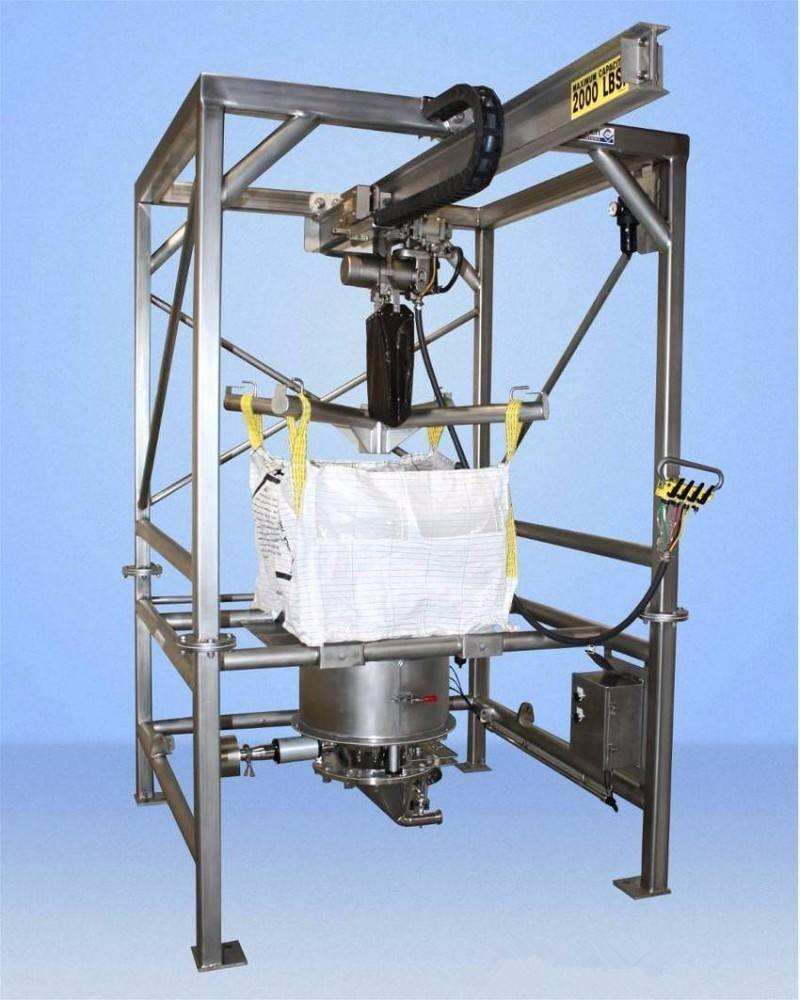

The ton bag packaging scale selects the appropriate model according to the feeding method.
1. Bring feeding method
The feeding mechanism of this packing scale adopts a flat conveyor belt for feeding, which has the advantages of simple structure, stable operation, and power saving. The feeding speed is realized by using a pneumatic gate baffle device to control the thickness of the material layer. The invention is suitable for grain raw materials such as rice, wheat and corn. Suitable for oil-bearing plant cakes; suitable for feed milling ball feed and full-price powder. The feeding method has good versatility, and it is a kind of packaging scale widely used at present. It is especially suitable for weighing and packaging pellet feed, which is not easy to break. The feeding method is not suitable due to poor sealing performance, fine particle size, and high powder density, such as cement, stone powder, and premix.
2. Twisting Dragon Breeding Method
The packing scale adopts screw twist feeder. The blackmailer feeder has good sealing performance. The shell is round. The design and manufacturing requirements of the twisted blades and housing are as much as possible. The number of blades between the inlet and the outlet must reach a certain number, otherwise it cannot be sealed well. The auger feed is divided into two types: auger and auger. The use of diagonal twisting dragons can prevent the material from flowing freely. In order to achieve the desired effect, the outlet of the hank usually should not be lower than the inlet. Hank yarn is suitable for pre-mixing with stone powder as carrier; flat twisted dragon is suitable for powdery materials with poor fluidity. Under normal circumstances, the size of the twisted-pair auger needs to realize fast forward and slow-forward. At the same time as the fast-forward, the size of the twisted-pair auger must run, and only the small twisted auger runs for the slow-forward.
3. Gravity feeding
Gravity feeding uses the weight of the material itself to feed the material in the form of free fall. The advantage of this method is that it does not require external power, but it requires the material to have excellent dispersibility. Sometimes in order to be smooth and uniform, a pneumatic loosening device is also needed. Fast feeding and slow feeding are usually based on the size of the door to control the flow rate. They are suitable for granular materials with good fluidity, such as rice, millet, and extruded grain feed, as well as coarse grains such as wheat, corn, rice and various beans. .
4. Vibration feed mode
Mechanical vibration and electromagnetic vibration. Mechanical vibration can change the motor speed through frequency conversion, that is, adjust the feed speed by changing the vibration frequency to achieve fast forward and slow forward. Electromagnetic vibration adjusts the feed speed by changing the amplitude of the input voltage, that is, by changing the electric vibration force. Vibration feeding has the characteristics of uniform feeding, high weighing accuracy, and the use of powder and granular materials. Some packaging scales use a mixed feed method. In order to improve the accuracy, the slow feed adopts electromagnetic vibration feed, such as small packaging scale 1 ~ 5kg/bag. Fast and medium feeding adopts self-input type; small feeding adopts electromagnetic vibration.
