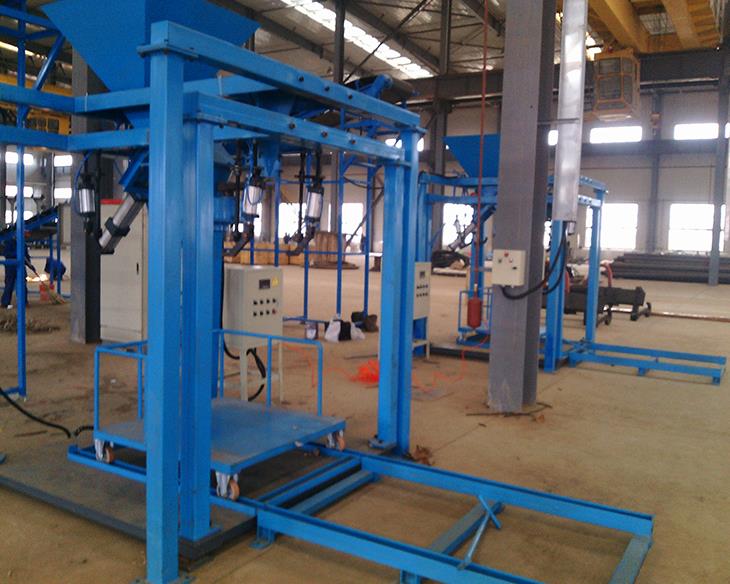

The occurrence of the ton bag packaging machine has greatly improved the work efficiency in the outer packaging field. However, sometimes the packaging machine may encounter a system failure. In fact, some of the system failures inside are all minor problems. If the user can grasp it Some packaging equipment faults can be solved by themselves, and then the production efficiency can be improved even more. Packaging equipment has been used for a long time, especially under continuous operation and overload conditions, it is very prone to certain electrical system failures and equipment failures:
1. Electric heating environment temperature jump:
analyze:
1. Check whether too much carbon deposits on the collector ring cause poor contact of the thermal resistance;
2. Check whether the connecting wire of the thermal resistance on the collector ring and the carbon brush holder is loose or oxidized;
3. Check whether the carbon brush holder is old and has no tensile strength.
Approach:
1. Grind the collector ring with paper or emery cloth to remove carbon;
2. Tighten the thermal resistance wire of each terminal on the carbon brush holder of the slip ring;
3. Replace the carbon brush holder.
prevention:
1. Check the carbon deposit on the collector ring before production and handle it properly;
2. Before manufacturing, check whether the connection points of the thermal resistance of the collector ring are loose, and handle them properly;
3. Check whether it is aging before manufacturing, and handle it properly; emergency measures: If the ambient temperature bounces too much, it cannot be solved during the manufacturing process, the upper and lower sealing environment temperature can be mutually used, and the internal and external environments can be sealed vertically The temperature can be mutually used, and the solid-state relay is used together with the electric heating wire, and the machine should be inspected or repaired when the machine is stopped or the equipment is stopped.
2. Display and check the related power circuit of the thermal resistance in the horizontal upper seal, horizontal lower seal, vertical seal or vertical seal:
Circuit analysis of ton bag packaging machine:
1. Check whether the thermal resistance connecting wire on the carbon brush holder is loose, falling off, or oxidized;
2. Check whether the thermal resistance connecting wire on the collector ring is loose, falling off, or oxidized;
3. Detect the pros and cons of thermal resistance, under normal circumstances, the resistance value is about 8 ohms.
Approach:
1. If the connecting wire of the carbon brush holder is loose or falling off, fix it again and tighten it again, and the connecting wire is oxidized and polished off the oxide layer or renewed the crimping nose;
2. If the connecting wire of the collector ring is loose or falling off, fix it again and tighten it again, and the connecting wire is oxidized and polished off the oxide layer or renewed the crimping nose;
3. Replace the thermal resistance.
prevention:
1. Before manufacturing, check whether the connecting wire of the collector ring is loose, fall off, or oxidized, and deal with any situation properly;
2. Before the packaging machine is manufactured, check whether the connecting wire of the carbon brush holder is loose, falling off, or being oxidized, and handle any situation properly;
3. Check whether there is any friction between the thermal resistor and the mechanical equipment before manufacturing, and see if there are crack marks on the thermal resistor itself, especially at the interface of the inserted knife; it is strictly forbidden to bend in the process of installing and replacing the thermal resistor.
3. No heating:
analyze:
1. Will the heating circuit breaker trip?
2. Is the solid state relay connection normal;
3. The heating plate and heating block themselves are broken, and the detection resistance value is unreasonable;
4. Is the contact point of the heating control switch on and off normal? Is the control line connected at the contact point;
5. Is the power plug on and off between the transformer of the ton bag packaging machine and the heating block (sheet) normal, mainly including circuit breakers, carbon brush holders, solid state relays, and whether the wiring methods on the collector ring are loose? And disconnect.
Solution:
1. Replace solid state relays;
2. Tighten the thread nose;
3. If the contact point fails, replace the contact point, control it and connect it again;
4. Replace the heating block (sheet);
5. Find out the reason and cover or replace the circuit breaker.
prevention:
1. Check on time;
2. Check the heating wire on time for insulation damage and copper leakage;
3. The packaging machine should be checked on time, and the rotary switch should be loosely tightened, and the contact point should be replaced in a timely manner with severe oxidation;
4. After shutdown, punching, and before manufacturing, check whether the heating block (sheet) is aging, and if it is aging, it must be replaced in a timely manner;
5. Check the heating route of the ton bag packaging machine on time, and pay attention to whether there is heat at the contacts during inspections.
