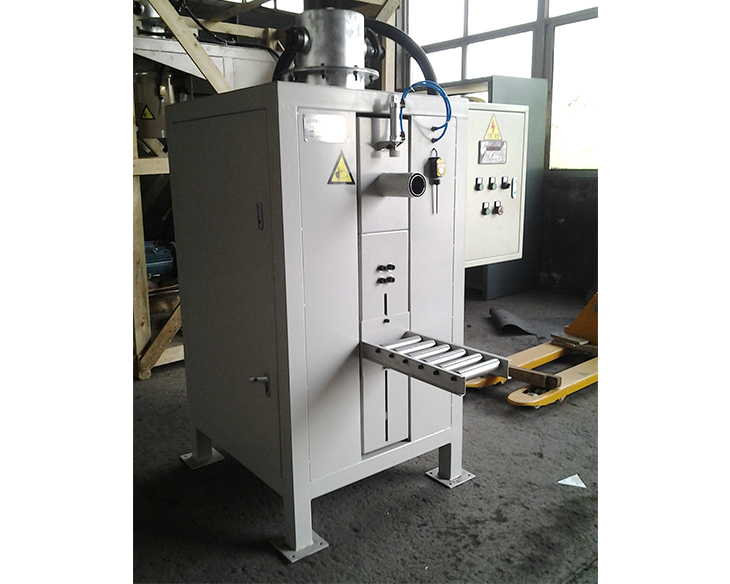

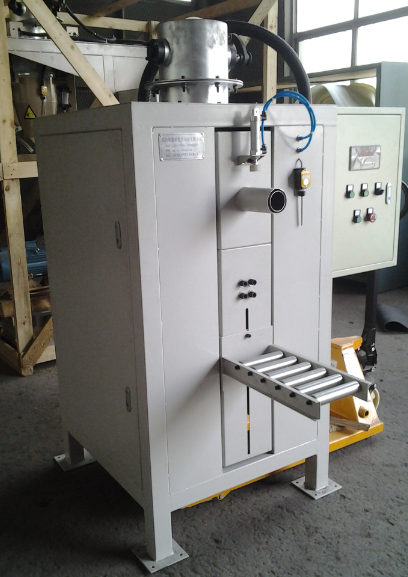

DCS50-FYValve bag packaging machineIt is designed according to the concept of humanization and environmental protection, and absorbing the advantages of similar products at home and abroad. It has the characteristics of fast packaging speed, accurate measurement, compact and reasonable structure, convenient maintenance, simple installation and operation, and good dust removal effect. It is suitable for quantitative canning of powder and granular materials with good fluidity.
The machine is mainly composed of a transmission feeding system, a weighing and weighing system, an electrical control system, a pneumatic control and execution system, and a body. Except for manual bagging, all other procedures are automatically completed during work, that is, the procedures of feeding, measuring, and loosening the bag are completed in sequence.
Technical characteristics
1. The feeding method is impeller type. It is designed in accordance with the structure of the powder feeder at home and abroad. It is driven by a variable-frequency speed-regulating motor with an excellent dust-proof structure. It is adjusted and controlled by the international top brand inverter. The feeding speed can be adjusted and controlled steplessly.
2. Adopt dust-proof measures, compact and advanced structure, and excellent dust-proof effect.
3. The filling and weighing system is an electronic scale measurement, equipped with high-precision weighing sensors and weighing control display instruments, using a full-board digital adjustment and parameter setting; with coarse and fine feeding setpoints, single-package weight setpoints , Automatic tare, automatic zero calibration, automatic drop correction, out-of-tolerance alarm and fault self-diagnosis functions; the instrument is equipped with a communication interface, which is convenient for online networking, and performs real-time monitoring and networked management.
4. The working process of the packaging machine is controlled by a programmable controller program, and can be equipped with an advanced touch screen man-machine interface, which can not only complete the touch control of the working process, but also realize the man-machine dialogue for the entire working process of the packaging machine and the technical support required for maintenance. .
5. Designed in accordance with the concept of environmental protection, it is equipped with a dust removal interface, which can be connected with the dust removal system to suck and remove the dust at the discharge port. It has the characteristics of advanced structure, reasonableness, and significant effect.
Structural features | ||
Feeding method | Impeller feed | |
Measurement method | Hanging measurement | |
Control System | Functions such as automatic tare, automatic drop correction, over-tolerance alarm and fault self-diagnosis. Equipped with a communication interface, it is convenient for online and networking, and can monitor and manage the packaging process from time to time. | |
Applicable materials: powder and granular materials with poor fluidity. | ||
Applicable industries: chemical industry, medicine, feed, fertilizer, mineral powder, electric power, coal, metallurgy, cement, biological engineering, etc. | ||
technical parameter | ||
Packaging capacity | 160-240bag/h | |
Packaging accuracy | ≤±0.2% | |
Packing specification | 5-50Kg/bag | |
power supply | AC380V, 50Hz | |
Gas source | 0.6-0.8MPa, air consumption 3-5m³/h | |
Dust removal air volume | 500-2000m³/h (optional according to material characteristics) | |
Environmental requirements: -10℃-50℃, humidity <> | ||
Packaging system options | ||
Bag form | Manual bagging, automatic bagging machine bagging | |
Control System | 1. Explosion-proof 2. No explosion-proof | |
Dust removal system | 1. Equipped with dust collector 2. No need for dust collector | |
Equipment material | 1. Carbon steel 2. Stainless steel 3. Stainless steel in contact with materials | |
Palletizing form | Manual palletizing, high and low position palletizing, joint robot palletizing | |
